MB7ICY Information
MB7ICY is a simplex 2m gateway located in Chorley, Lancashire permanently linked to GB3RF Hub and the North West Allstar Group.
Listen Live.
You can listen to audio streamed from MB7ICY using the audio control below. Click play to start.
License details.
| Callsign | MB7ICY |
| Transmitter Frequency | 145.225MHz |
| Receiver Frequency | 145.225 MHz |
| CTCSS Access Tone | 82.5Hz |
| Modes | FM-Narrow 2.5KHz deviation |
| Antenna | X50 |
| Antenna Height Above Ground | 6m |
| Maximum Transmitter PowerERP | 7dBW, 5W |
| Responsible Licensee | M7GFA |
Radio Settings.
To use a simplex gateway you need to listen and transmit on the same frequency, MB7IRW transmits and receives on 145.225MHz and requires a CTCSS tone of 82.5Hz.
MB7ICY is permanently linked to GB3RF Hub and the North West Allstar Group.
All simplex gateway nodes are licensed for narrow deviation only so please make sure your radios are set to narrow. If you operate your radio in wide deviation mode you could cause distortion and your signal may be dropped by the gateway radio. Leave a gap of four seconds between overs to allow all linked nodes to reset and for anyone else to join in. Before transmitting into a gateway please listen for a while to make sure it's not in use. Two people can use the same gateway to talk with other users but as it's only simplex you will be hearing the other local user directly from their radio to yours.
The tones from the gateway assist with determining who is operating from where.
When you transmit into the gateway and it's connected to another node, as you unkey, the gateway will reply with a morse K (dah-dit-dah) with a higher frequency of 1200Hz.
When you transmit into the gateway and it isn't connected to another node, as you unkey, the gateway will reply with a morse K (dah-dit-dah) with a lower frequency of 800Hz.
When a remote user on the network ends transmission you will hear a morse I ( dit-dit).

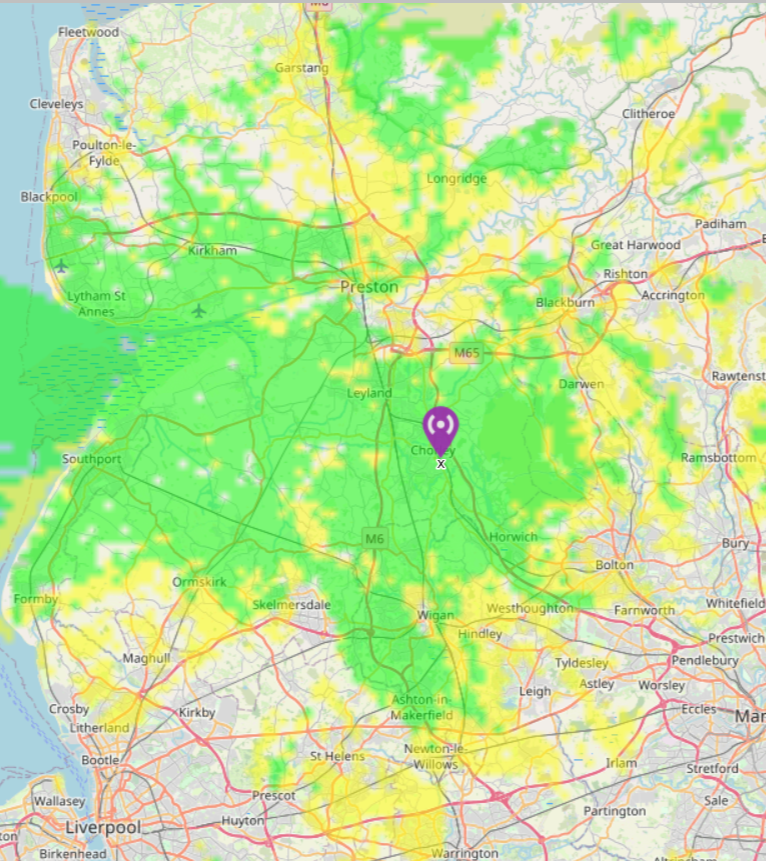

Coverage Prediction.
