MB7ITC Information

License details.

Callsign MB7ITC
Transmitter Frequency 145.3375 MHz
Receiver Frequency 145.3375 MHz
CTCSS Access Tone 103.5Hz on Receive and Transmit
Modes FM-Narrow 2.5KHz deviation
Antenna Comet GP15
Antenna Height Above Ground 10m
Maximum Transmitter Power PEP 1.5 dBW, 1.4W
NOV Holder 2E0XLG

Radio Settings.

To use a simplex gateway you need to listen and transmit on the same frequency,  MB7ITC transmits and receives on 145.3375MHz and requires a CTCSS tone of 103.5Hz.

MB7ITC is permanently linked to GB3RF and is intended to extend GB3RF's into North Yorkshire.

All simplex gateway nodes are licensed for narrow deviation only so please make sure your radios are set to narrow. If you operate your radio in wide deviation mode you could cause distortion and your signal may be dropped by the gateway radio. Leave a gap of four seconds between overs to allow all linked nodes to reset and for anyone else to join in. Before transmitting into a gateway please listen for a while to make sure it's not in use. Two people can use the same gateway to talk with other users but as it's only simplex you will be hearing the other local user directly from their radio to yours.

The tones from the gateway assist with determining who is operating from where.

When you transmit into the repeater and it's connected to another node, as you unkey, the gateway will reply with a morse K (dah-dit-dah) with a higher frequency of 1200Hz.

When you transmit into the repeater and it isn't connected to another node, as you unkey, the gateway will reply with a morse K (dah-dit-dah) with a lower frequency of 800Hz.

When a remote user on the network ends transmission you will hear a morse I ( dit-dit).

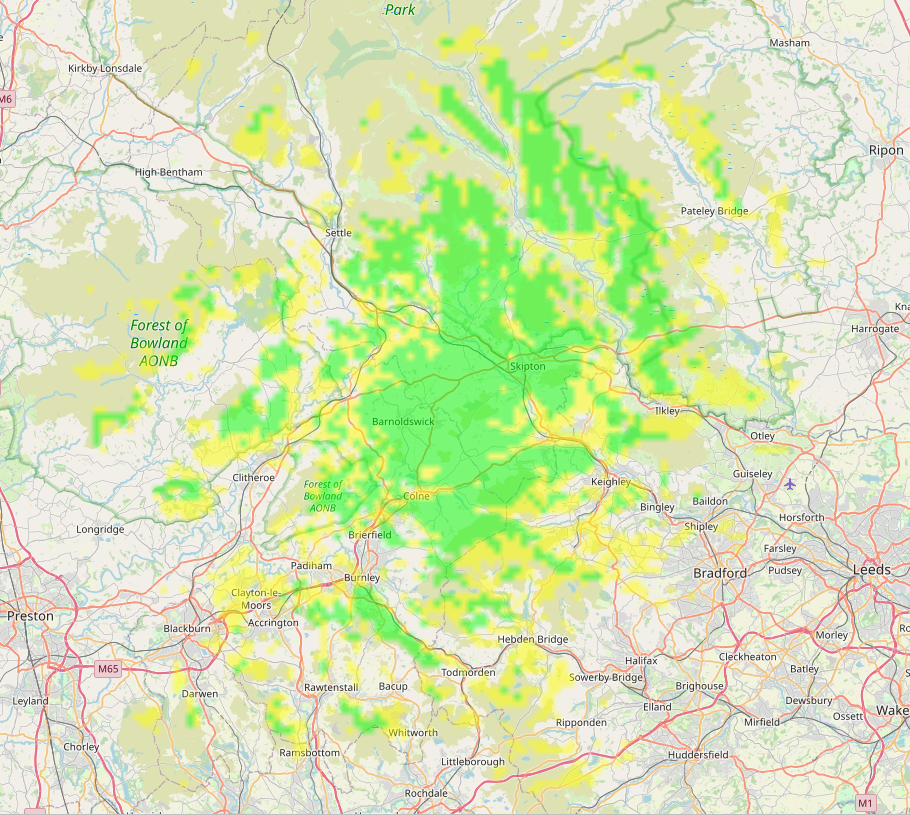

Coverage Prediction.

MB7ITC Coverage Prediction
